Acoustic Standard Wall Panel

WR-SK
Rock Wool Insulated Acoustic Standard Wall Panel

  • Acoustic Standard Wall Panel
  • Acoustic Standard Wall Panel
  • Acoustic Standard Wall Panel

Please fill out information form for selecting proper Sandwich Panels for your project needs.

Product Features

  • Lined type outer sheet
  • Outer sheet is prepainted galvanized steel, inner sheet is perforated prepainted galvanized steel
  • Both vertical and horizontal cladding
  • External fixing joint detail
  • Usage for sound insulation and acoustic improvement
  • Fire performance according to TS EN 13501-1,A2-s1; d0 for Rock Wool insulated Acoustic Wall Panels
  • Production flexibility at any ordered length between 2 m - 8 m
  • Core thickness options 50-60-80-100-120-150 mm
  • According to TS EN 14509, U values range between 0,70 – 0,24 W/m2K depending on the panel thickness
  • Production at the factories in Mersin and Sakarya

Application Areas

  • Industrial Facilities
  • Commercial Buildings
  • Social Constructors
  • Power Plants

Certificate

  • TSE EN ISO 9001: 2008

Physical Data

Acoustic Standard Wall Panel Physical Data

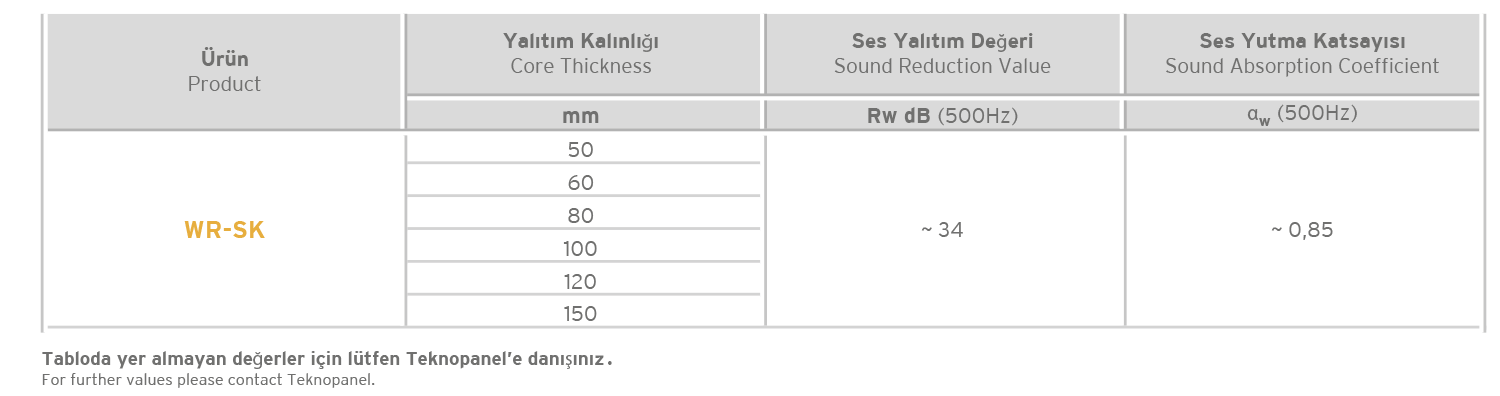

Performance Table

Acoustic Standard Wall Panel Performance Table
