5 Ribs Membrane Roof Panel-Double Sheet
RR-5SM+
Rock Wool Insulated 5 Ribs Membrane Roof Panel-Double Sheet
Please fill out information form for selecting proper Sandwich Panels for your project needs.
Product Features
- 5 ribs profiled inner sheet
- Inner sheet is prepainted galvanized steel, outer sheet is galvanized sheet coated with PVC membrane
- Production in various color options
- Usage in buildings that require fire safety
- Application of flat roofs and roofs with a slope lower than 5%
- Production flexibility at any ordered length between 2 m - 12 m
- Core thickness options 50-60-80-100-120-150 mm
- PVC membrane thickness options 1,20-1,50-1,80-2,00 mm
- According to TS EN 14509, U values range between 0,62 – 0,23 W/m2K depending on the panel thickness
- PUR and PIR insulation alternatives besides rock wool insulation
- Production at the factories in Mersin and Sakarya
Application Areas
Certificates

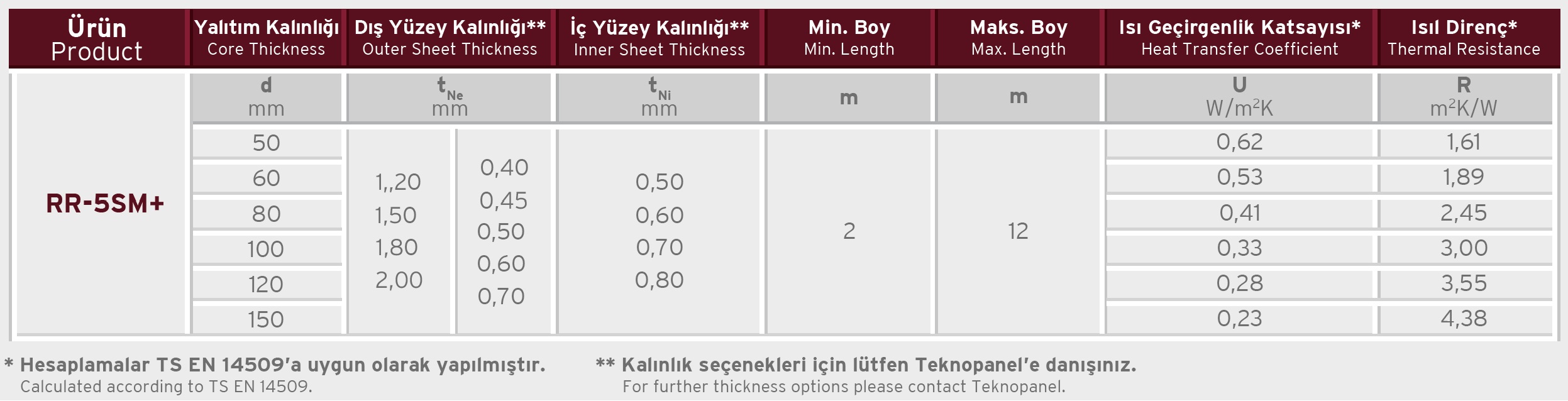

Physical Data
-
Download
