Secret Fix Wall Panel

WP-HP / WI-HP
PUR/PIR Insulated Secret Fix Wall Panel

Please fill out information form for selecting proper Sandwich Panels for your project needs.

Information Form

+90 850 777 0850

Product Features

Lined, micro lined, deep lined and sinus & lined surface type options
Prepainted galvanized steel or aluminum inner and outer sheet alternatives
Production in various color options
Both vertical and horizontal cladding
Secret fixing joint detail
Fire performance according to TS EN 13501-1,B-s2; d0 for PUR insulated wall panels,B-s1; d0 for PIR insulated wall panels
Production flexibility at any ordered length between 2 m - 12 m
Core thickness options: lined and micro lined panels 40-50-60-70-75-80-100-120-150-180-200 mm; deep lined panels 40-50-60 mm

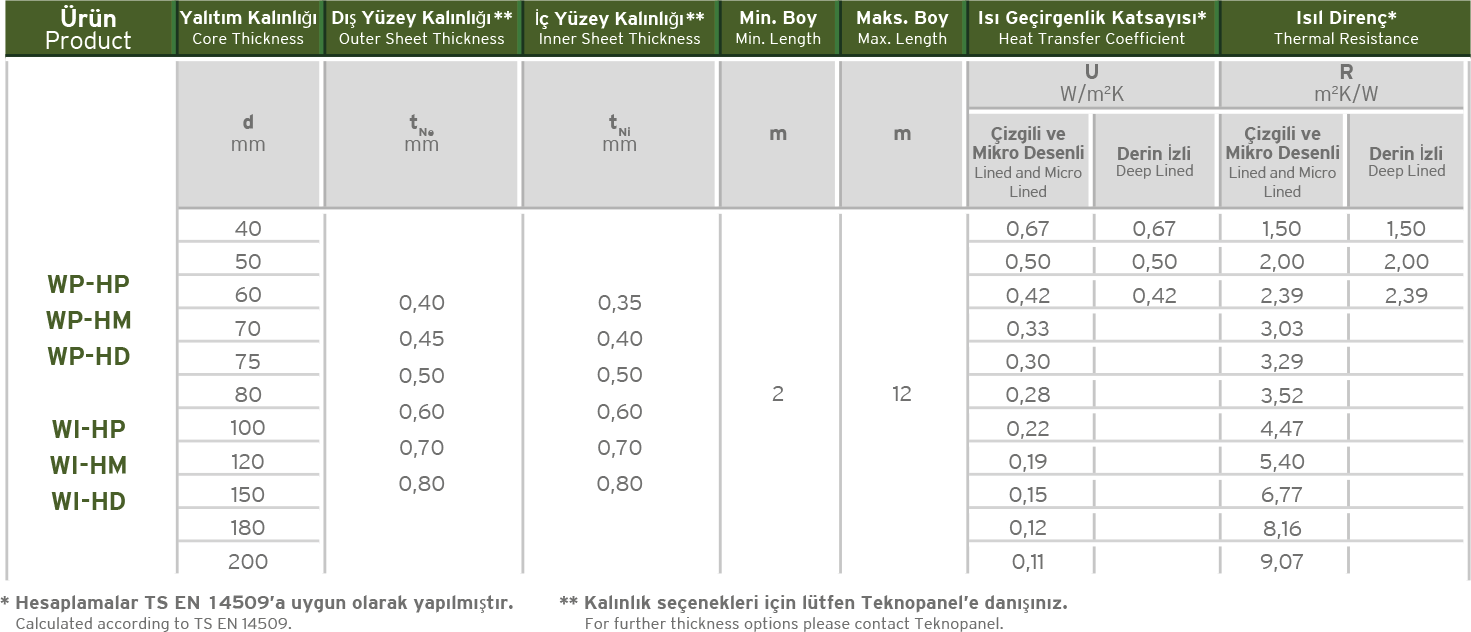

According to TS EN 14509, U values range between 0,67 – 0,11 W/m2K for lined and micro lined 0,67 – 0,42 W/m2K for deep lined depending on the panel thickness
Mineral Wool insulation alternative besides PUR and PIR* insulation
ISO, TSE, CE quality certificates and FM Approval Certificate*
Production at the factories in Mersin and Sakarya (Deep lined production at Mersin factory, Sinus & lined production at Sakarya factory)
