5 Ribs GRP Roof Panel
RP-5SC / RI-5SC
PUR/PIR Insulated 5 Ribs GRP Roof Panel
Please fill out information form for selecting proper Sandwich Panels for your project needs.
Product Features
- 5 ribs profiled outer sheet
- Inner sheet is GRP, outer sheet is prepainted galvanized steel or aluminum
- Production in various color options
- Application on roofs with a slope higher than 5%
- Possibility to use at modern animal and poultry husbandry facilities, and environments requiring chemical resistance
- Fire performance according to TS EN 13501-1,B-s2; d0 for PUR insulated roof panels,B-s1; d0 for PIR insulated roof panels
- Production flexibility at any ordered length between 2 m - 12 m
- Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm
- GRP thickness options between 0,70 mm – 1,00 mm
- According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness
- PUR and PIR insulation alternative
- Production at the factories in Mersin and Sakarya
Application Areas
Certificate

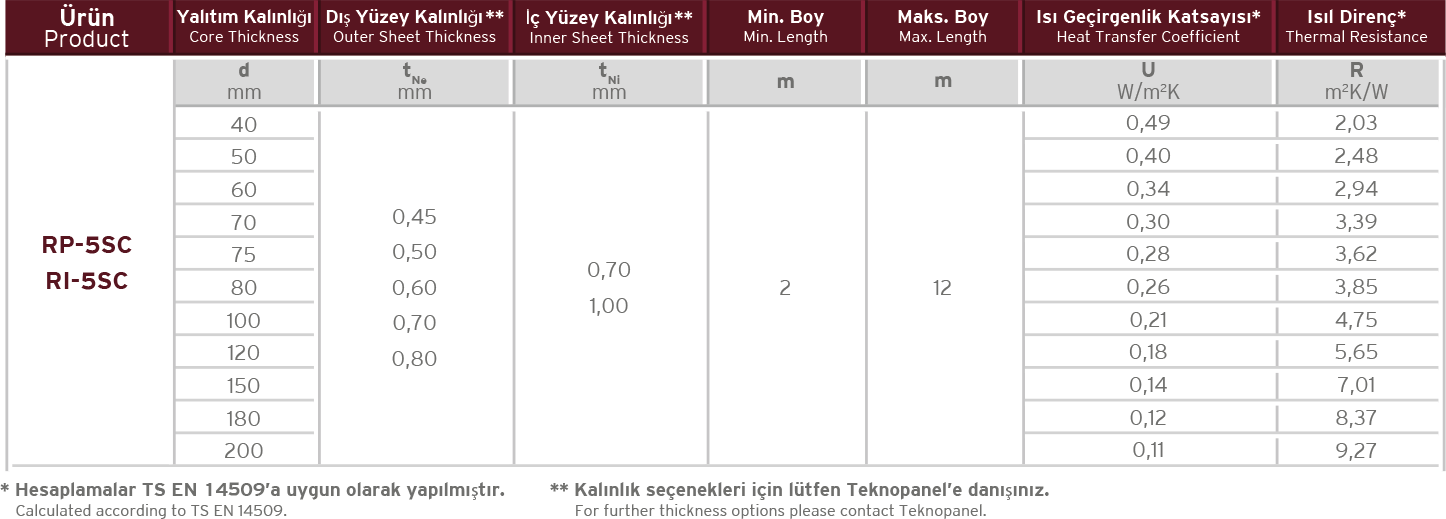

Physical Data

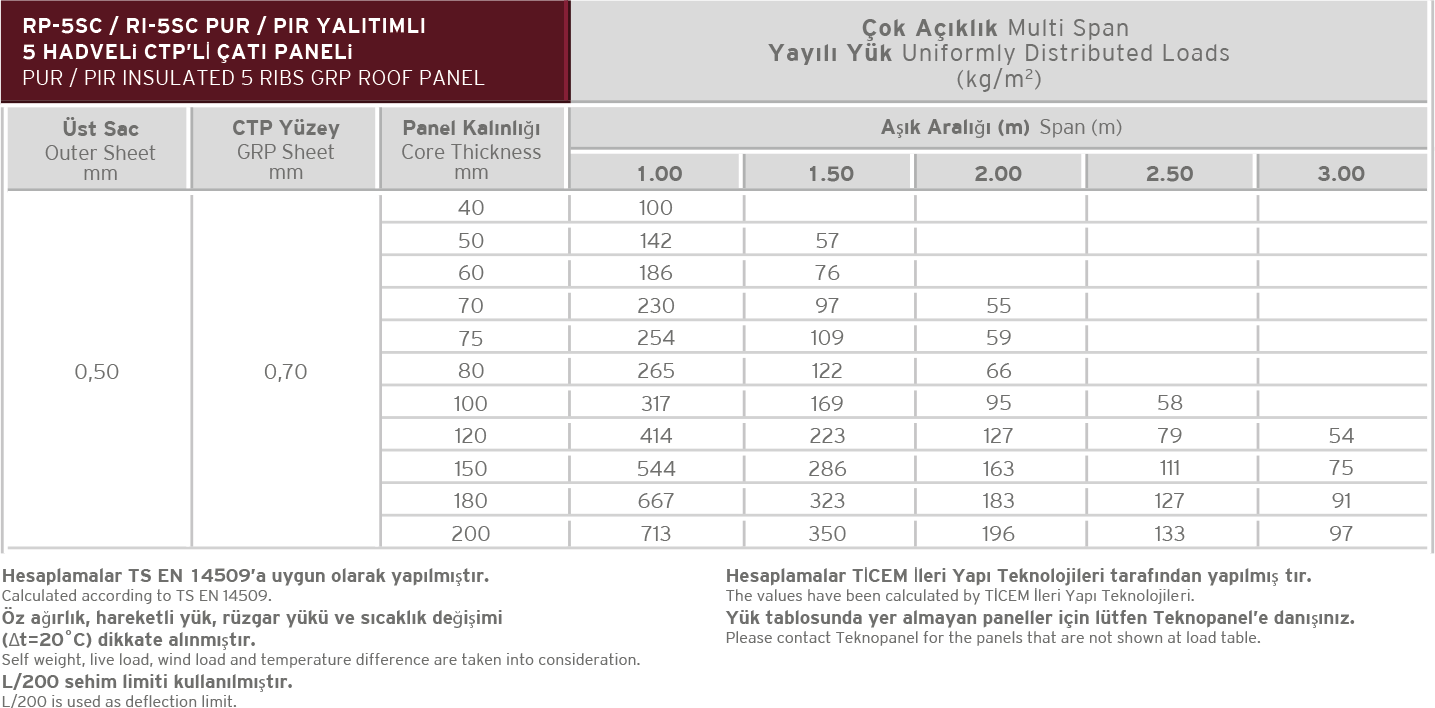

Load Table
- Download
- Coating and Colours
