Cold Storage Panel-Mersin

CP-SP / CI-SP
PUR/PIR Insulated Cold Storage Panel - Mersin

  • Cold Storage Panel-Mersin
  • Cold Storage Panel-Mersin
  • Cold Storage Panel-Mersin

Please fill out information form for selecting proper Sandwich Panels for your project needs.

Product Features

  • Lined and flat surface type options
  • Prepainted galvanized steel, stainless steel or PVC film laminated inner and outer sheet alternatives
  • Fire performance according to TS EN 13501-1,B-s2; d0 for PUR insulated cold storage panels,B-s1; d0 for PIR insulated cold storage panels
  • Production flexibility at any ordered length between 2 m - 12 m
  • Core thickness options 80-100-120-150-180-200 mm
  • According to TS EN 14509, U values range between 0,27 – 0,11 W/m2K depending on the panel thickness
  • PUR and PIR* insulation alternatives
  • ISO, TSE, CE quality certificates and FM Approval Certificate*
  • Production at Mersin factory

Application Area

  • Cold Storage

Certificates

  • CE document
  • TSE
  • TSE EN ISO 9001: 2008
  • FM Approved

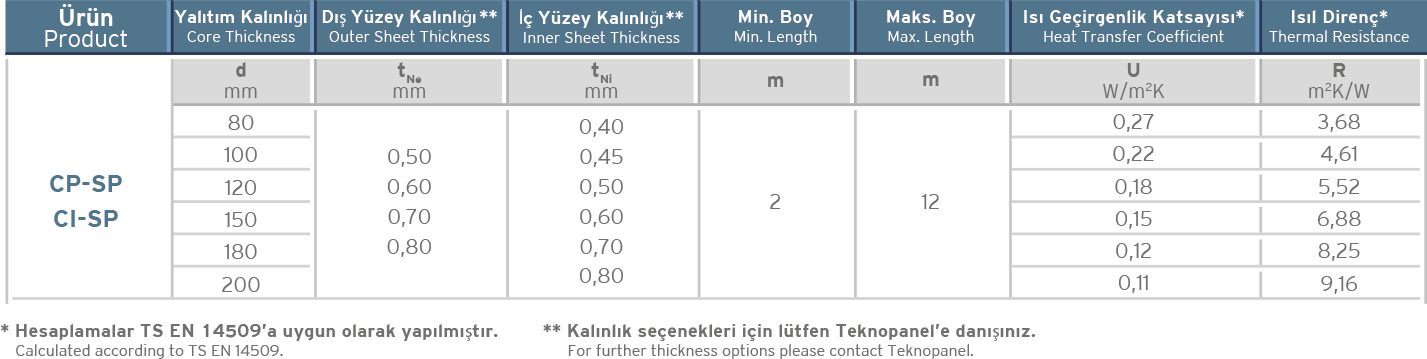

Physical Data

Cold Storage Panel-Mersin Physical Data

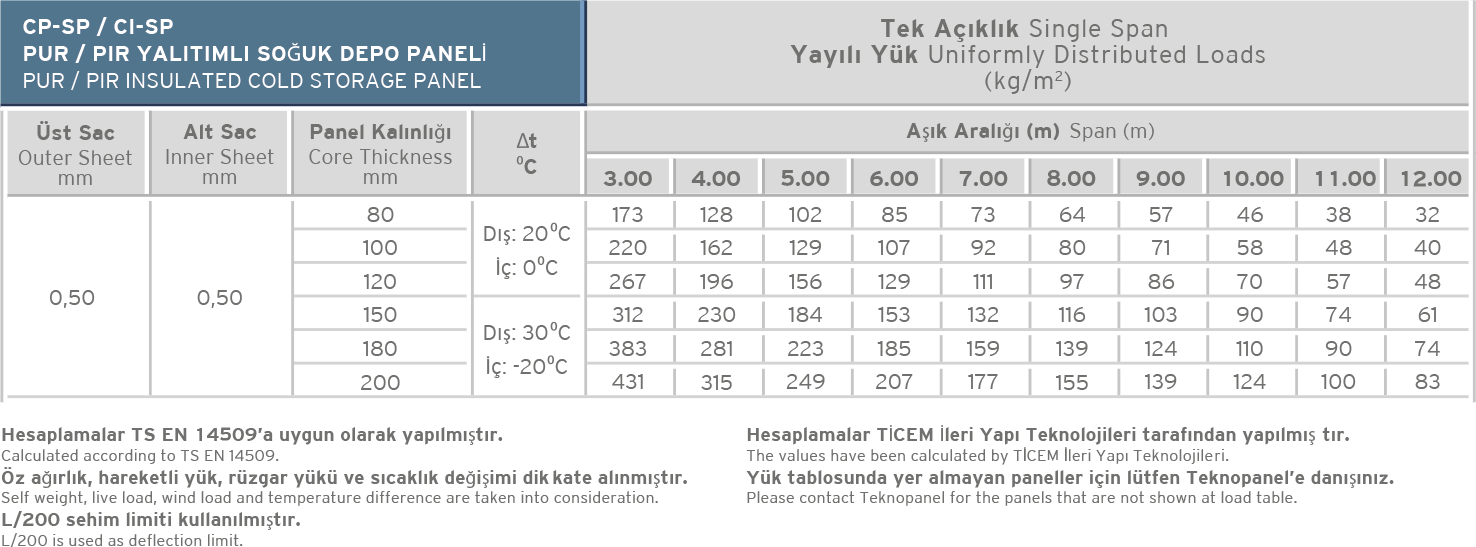

Load Table

Cold Storage Panel-Mersin Load Table
