Standard Wall Panel

WR-SP
Rock Wool Insulated Standard Wall Panel


  • Standard Wall Panel
  • Standard Wall Panel
  • Standard Wall Panel

Please fill out information form for selecting proper Sandwich Panels for your project needs.

Product Features

  • Lined and micro lined surface type options
  • Coated galvanize sheet inner and outer surface material
  • Production in various color options
  • External fixing joint detail
  • Both vertical and horizontal cladding
  • Usage in buildings that require fire safety
  • Fire performance according to TS EN 13501-1,A2-s1; d0 for Rock Wool insulated wall panels
  • Production flexibility at any ordered length between 2 m - 10 m
  • Core thickness options 50-60-80-100-120-150 mm
  • According to TS EN 14509, U values range between 0,70 – 0,24 W/m2K depending on the panel thickness
  • PUR, PIR and EPS insulation alternatives besides Rock Wool insulation
  • ISO, TSE, CE quality certificates
  • Production at the factories in Mersin and Sakarya

Application Areas

  • Industrial Facilities
  • Commercial Buildings
  • Social Constructors
  • Power Plants

Certificates

  • CE document
  • TSE
  • TSE EN ISO 9001: 2008

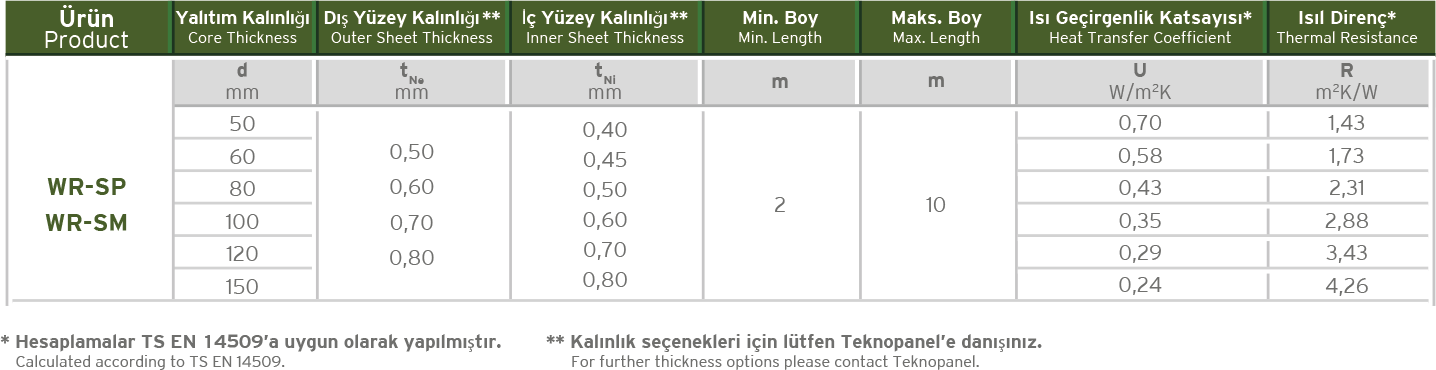

Physical Data

Standard Wall Panel Physical Data

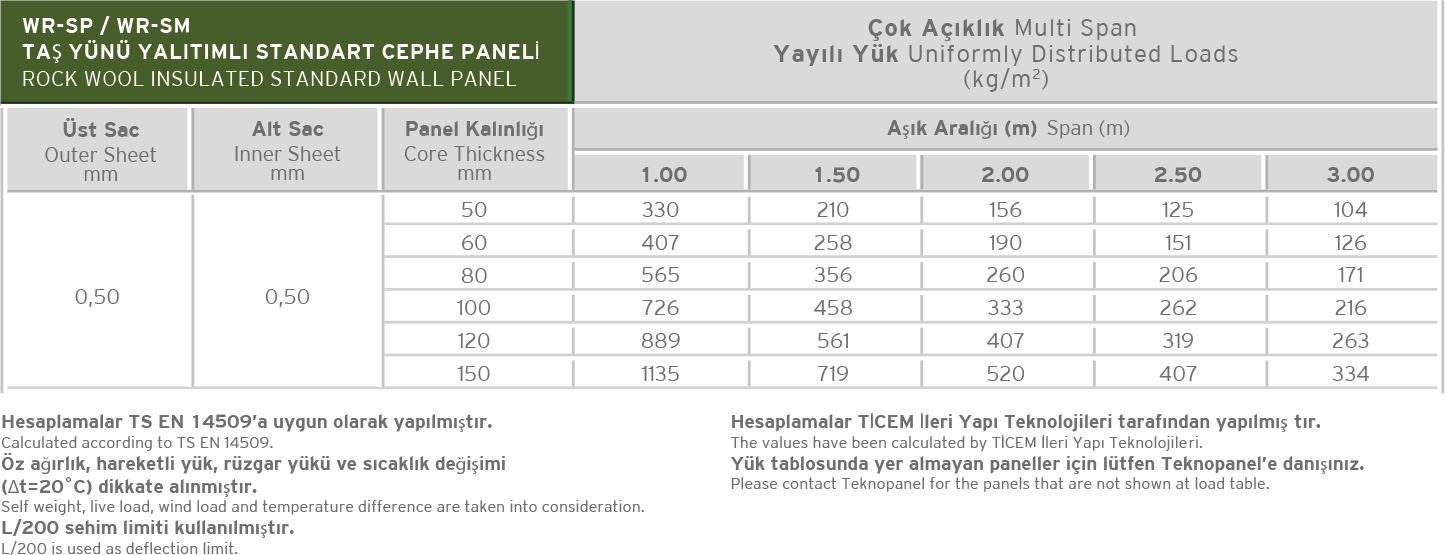

Load Table

Standard Wall Panel Load Table
