PUR/PIR Insulated 5 Ribs Membrane Roof Panel

RP-5SM / RI-5SM
PUR/PIR Insulated 5 Ribs Membrane Roof Panel-Single Sheet

Please fill out information form for selecting proper Sandwich Panels for your project needs.

Information Form

+90 850 777 0850

Product Features

5 ribs profiled inner sheet
Inner sheet is prepainted galvanized steel, outer sheet is PVC Membrane
Production in various color options
Application of flat roofs and roofs with a slope lower than 5%
Fire performance according to TS EN 13501-1,B-s2; d0 for PUR insulated roof panels,B-s1; d0 for PIR insulated roof panels
Production flexibility at any ordered length between 2 m - 12 m

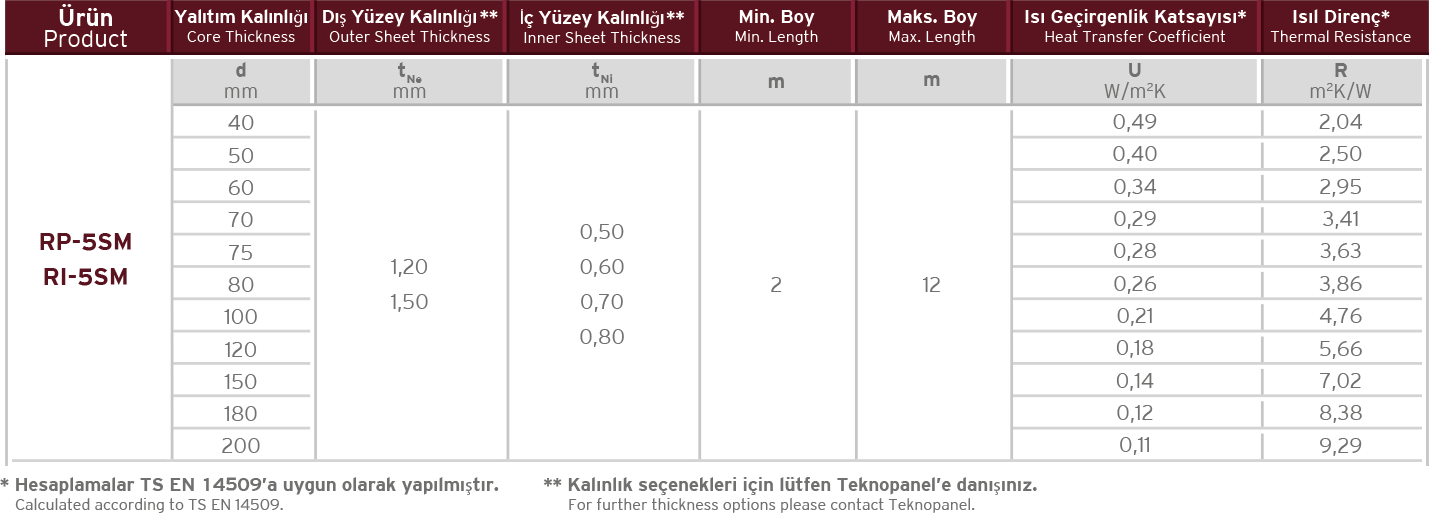

Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm
PVC Membrane thickness options 1,20-1,50-1,80-2,00 mm
According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness
Mineral Wool insulation alternative besides PUR and PIR insulation
Production at the factories in Izmir, Mersin and Sakarya
