5 Ribs Secret Fix Solar Roof Panel
RP-5H / RI-5H
PUR/PIR Insulated 5 Ribs Secret Fix Solar Roof Panel
Please fill out information form for selecting proper Sandwich Panels for your project needs.
Product Features
- 5 ribs profiled outer sheet is compatible with the solar panels
- Prepainted galvanized steel or aluminum inner and outer sheet alternatives
- Production in various color options
- Application on roofs with a slope higher than 5%
- The design of clamp allows solar panel is assembled to panel without drilling
- Possibility to screw from the middle rib
- Optional middle cap profile
- Full impermeability via the cap profile placed on the connecting screws
- Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels
- Production flexibility at any ordered length between 2 m - 15 m
- Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm
- According to TS EN 14509, U values range between 0,52 – 0,14 W/m2K depending on the panel thickness
- PUR and PIR* insulation alternative
- ISO, TSE, CE and Gost-R*, Gost-K, FM Approved* certificates
- Production at Sakarya factory
Application Areas
Certificates

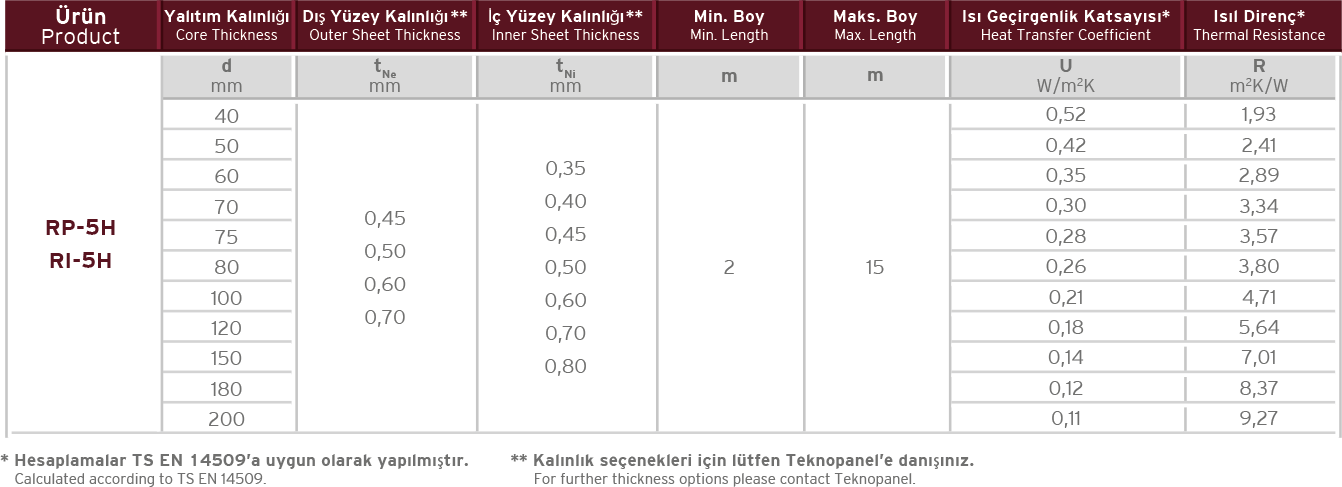

Physical Data

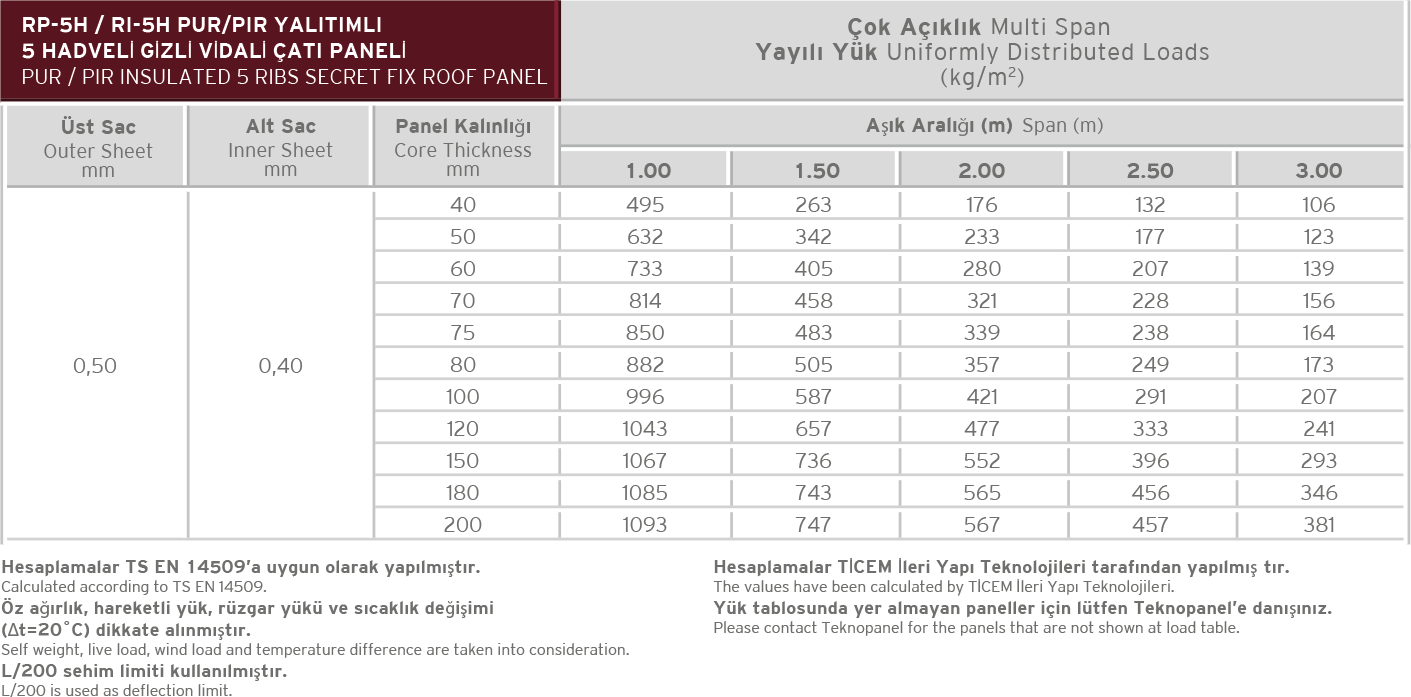

Load Table
-
Download
